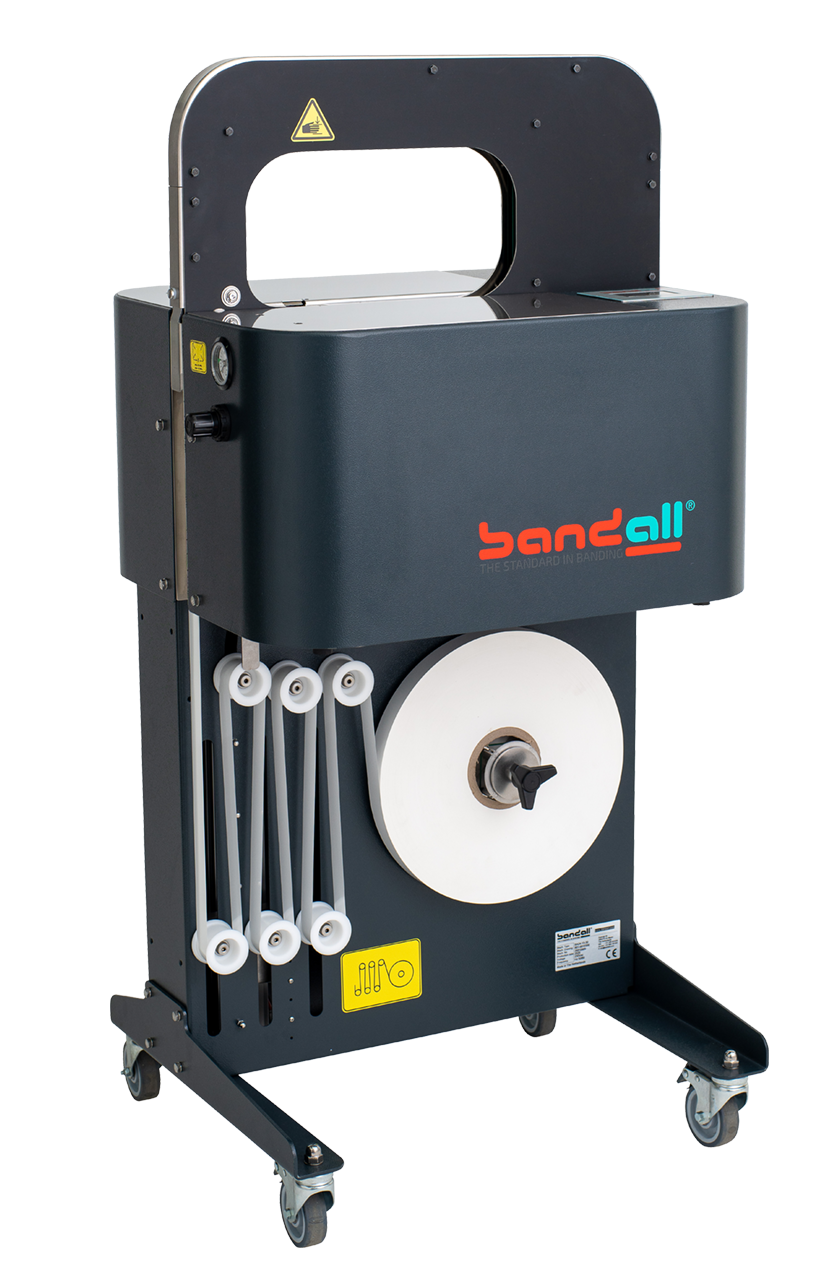

The Standard Bandall Series; Brilliant and robust design. That’s what characterises Bandall’s banding systems. These high-quality products, of Dutch manufacture, are the innovation in banding and bundling.
The Bandall can be adapted to fulfil any banding requirement. We are happy to offer you advice tailored to your product No other system than Bandall is able to process 35 micron banding materialRapidly and reliably, thanks to the advanced band transport system
Economically and environmentally friendly, through reduced use of material - extremely thin paper or film

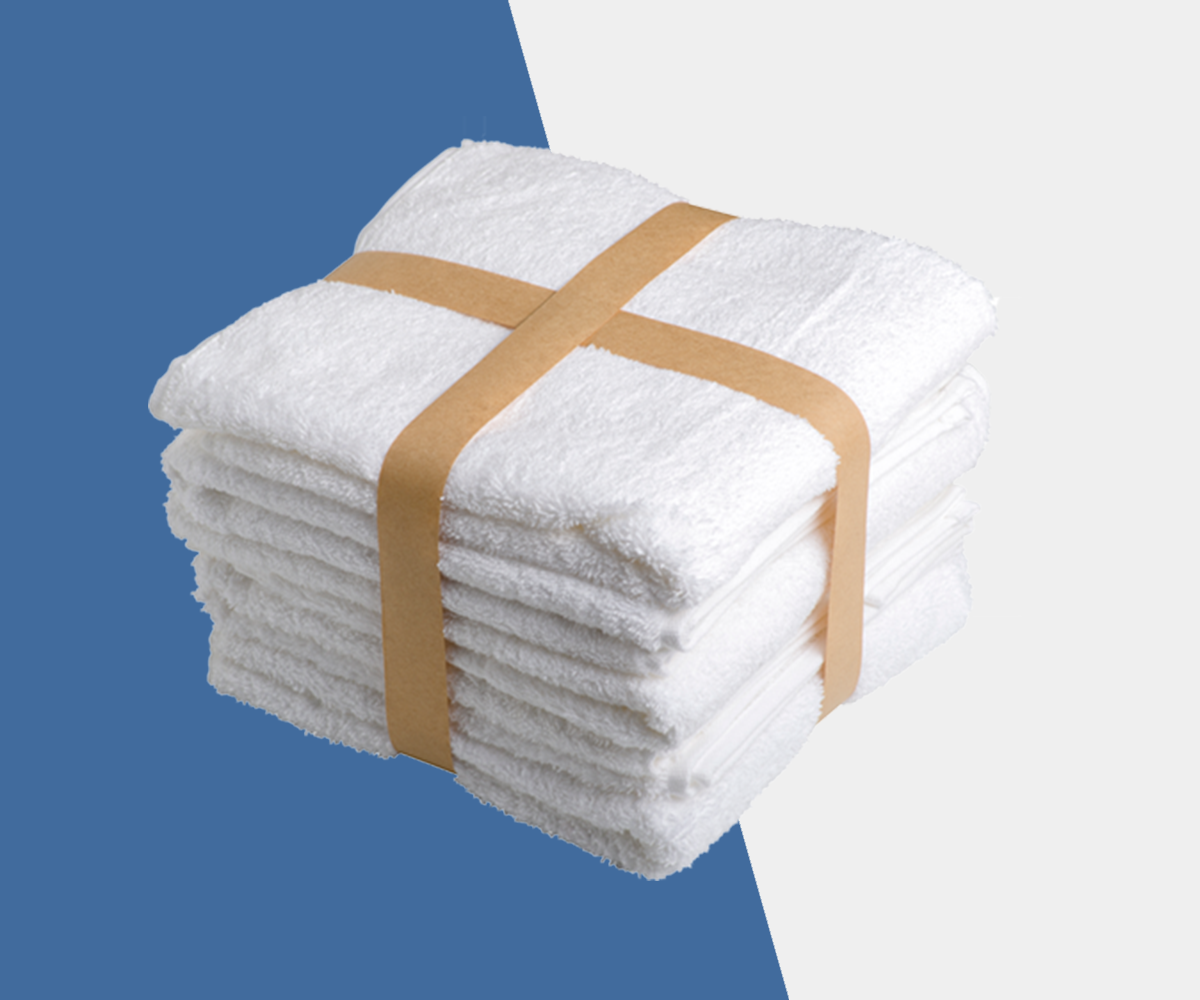

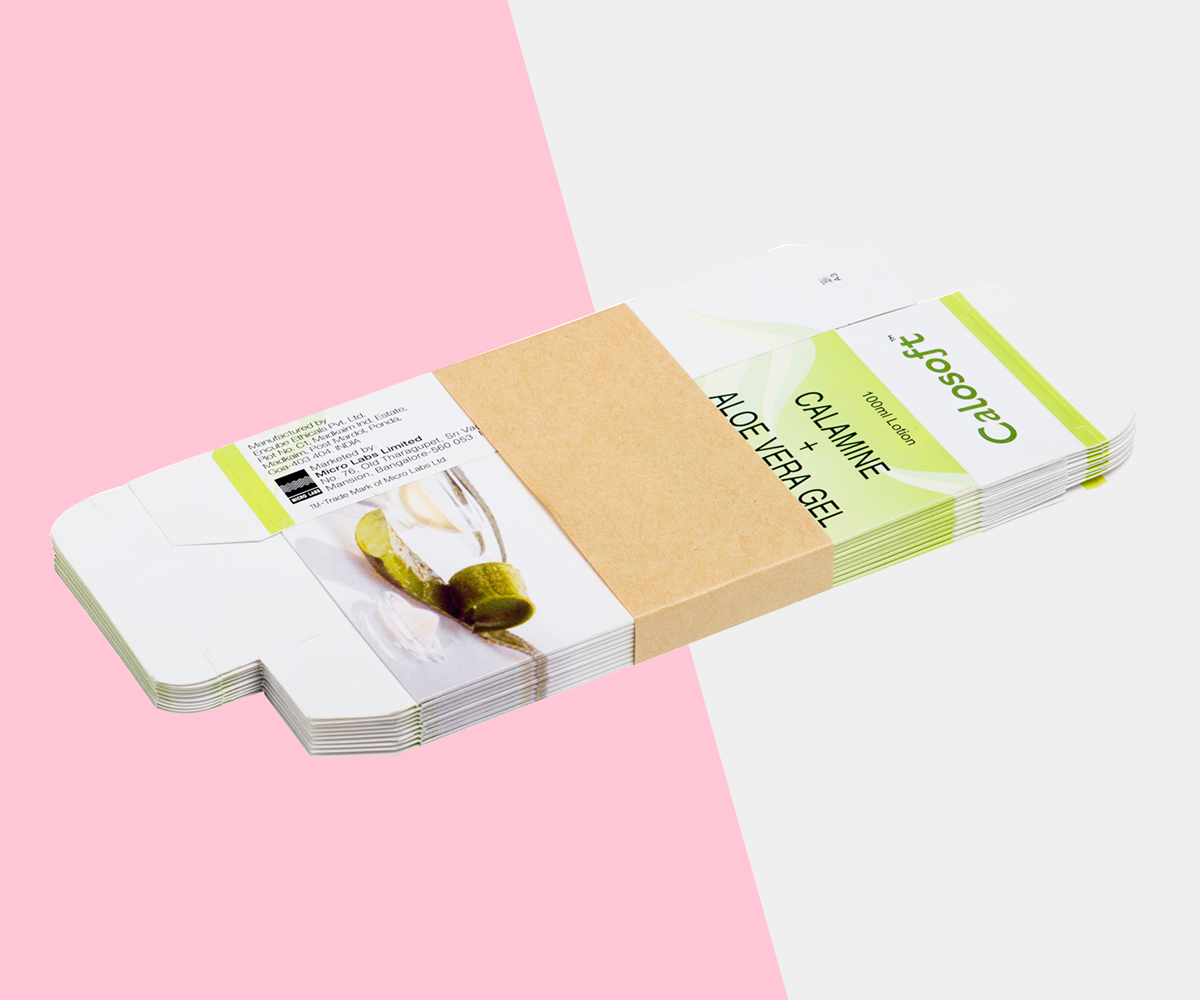

Printed or blank paper and film banding
Without damage, band tension can be adjusted with precision, achieving stable packaging
Cleanly, odour and smoke free, due to the ‘Ultra Clean Seal’ system
With low energy costs, and minimal maintenance
With lowest operational costs

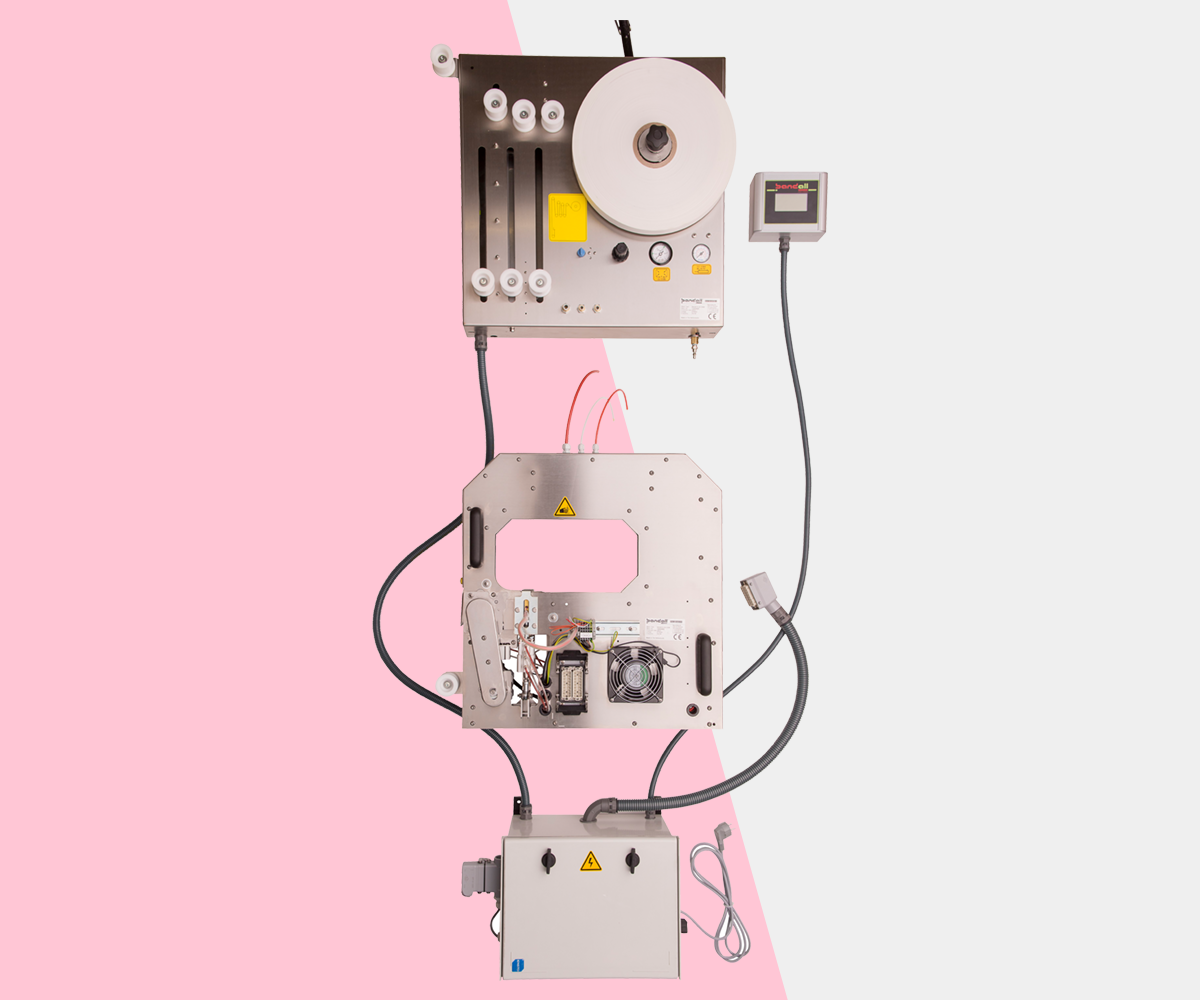

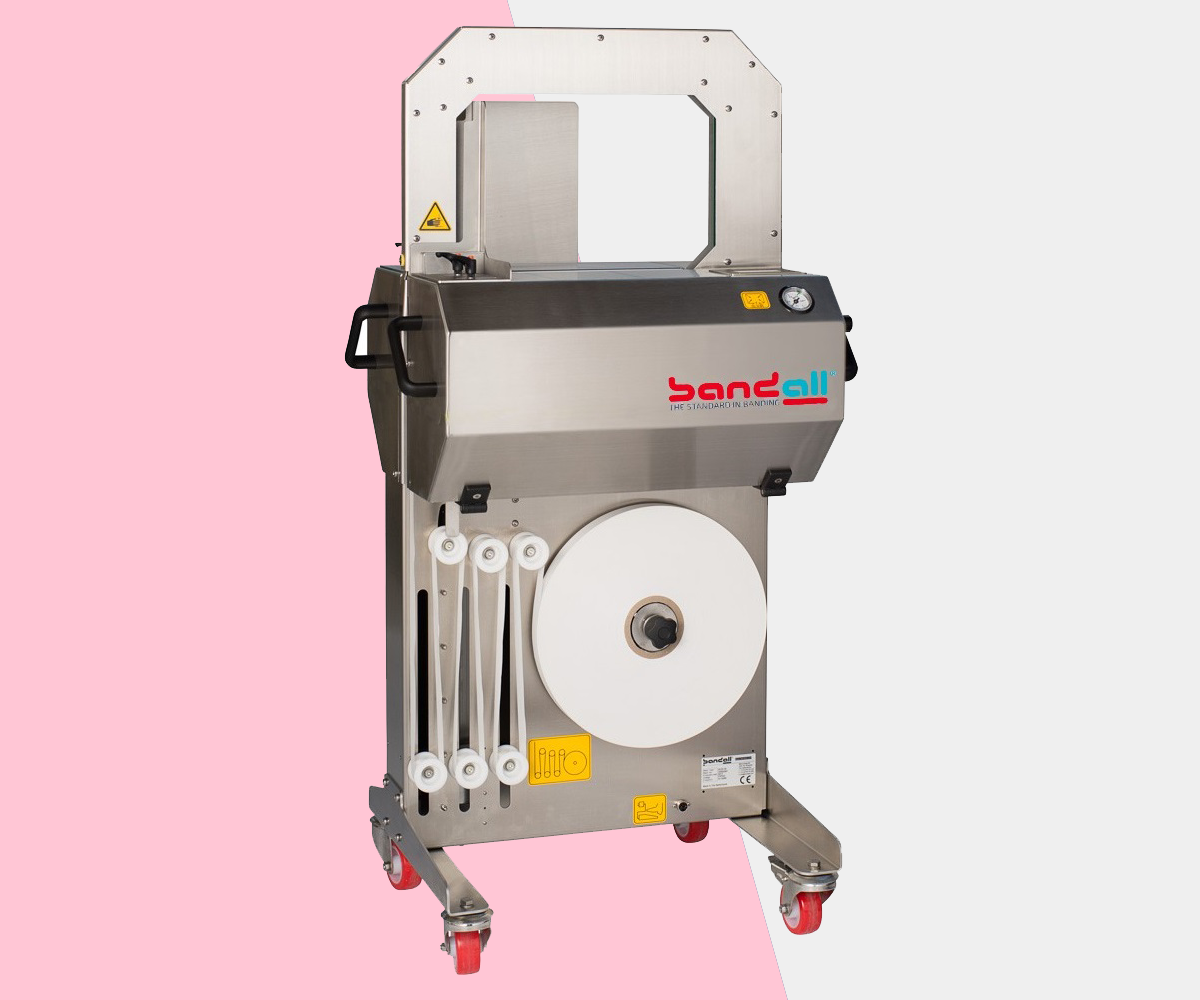

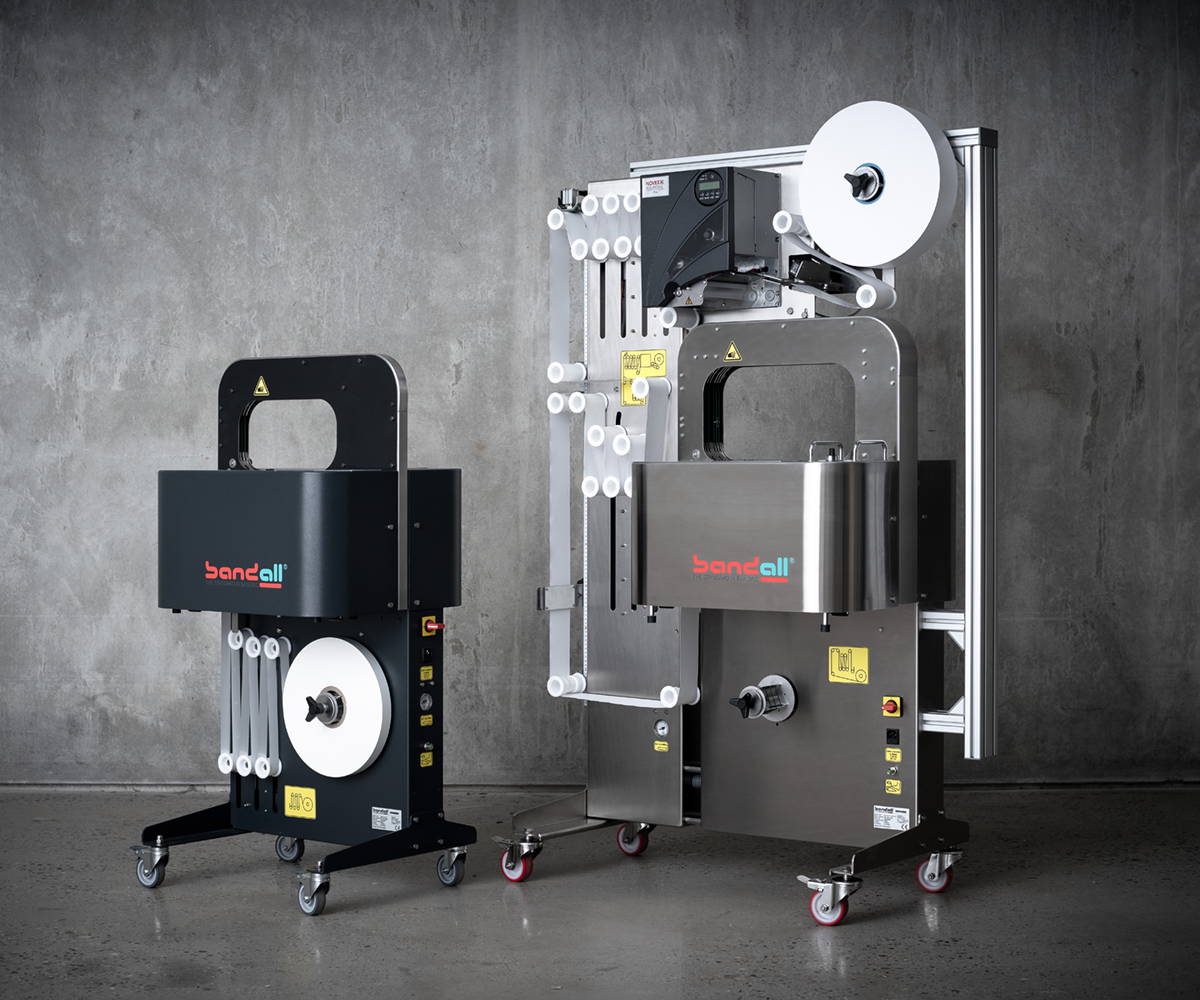

Machines in the Bandall Standard Series are available in a wide range of channel sizes suitable for 28, 40, 48, 60, 75, 100 and 125 mm bands. Bandall banding equipment is also available in Stainless Steel and in fully automatic models. Equipment may also be fitted with an external reel holder, presses and positioning technology. In other words Bandall can be adapted to fulfil any banding requirement.
A choice of :- Automatic operation, Operation via hand or foot switch
Economically and environmentally friendly, through reduced use of material - extremely thin paper or film
Access to settings via touchscreen A variety of options, such as a positioning system, printer and bundle press
Channel widths to accommodate bands of 28, 40, 48, 60, 75, 100 and 125 mm
Adjustable product guides
Castors with brakes
Easy and accurate selection of band tension

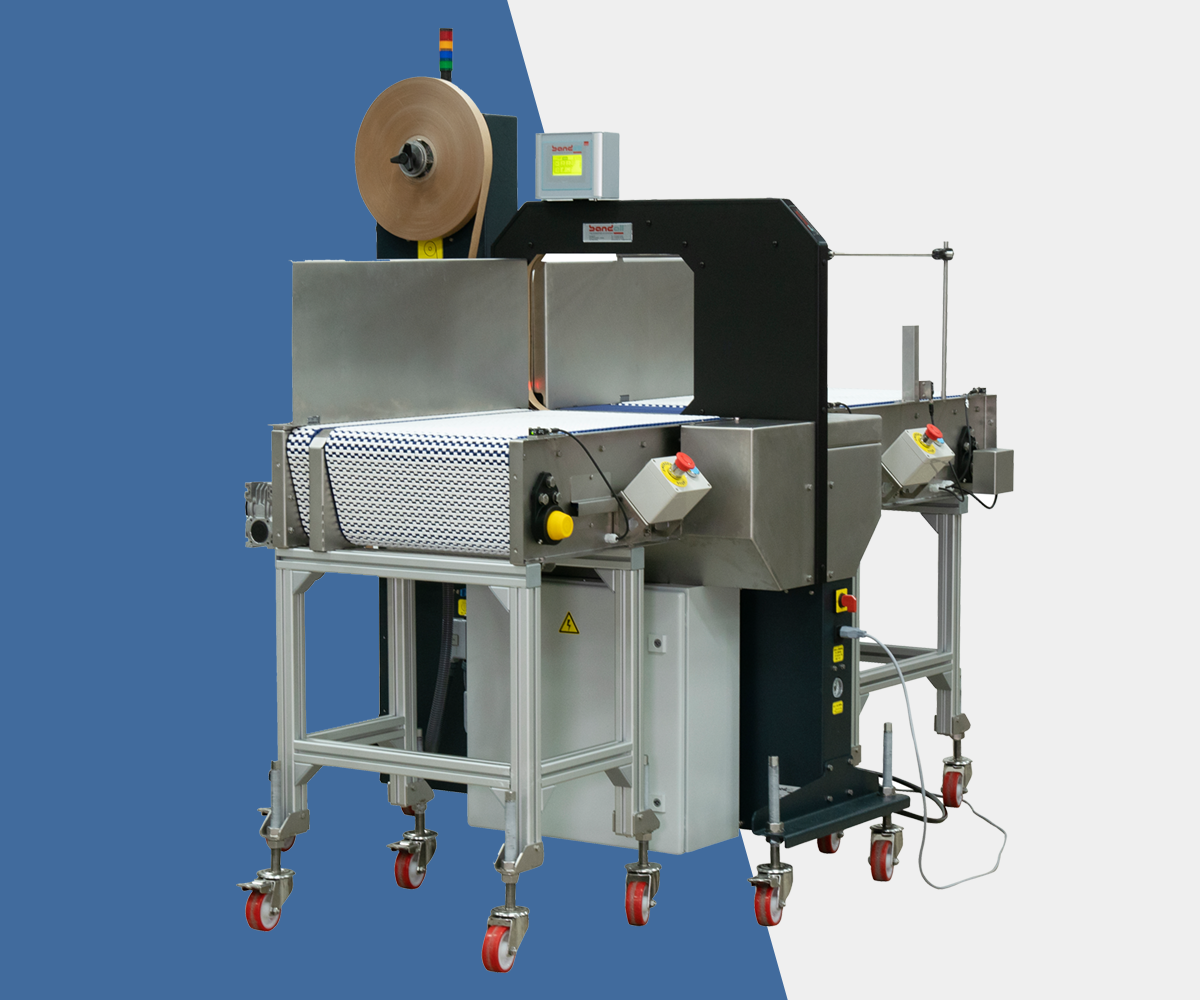

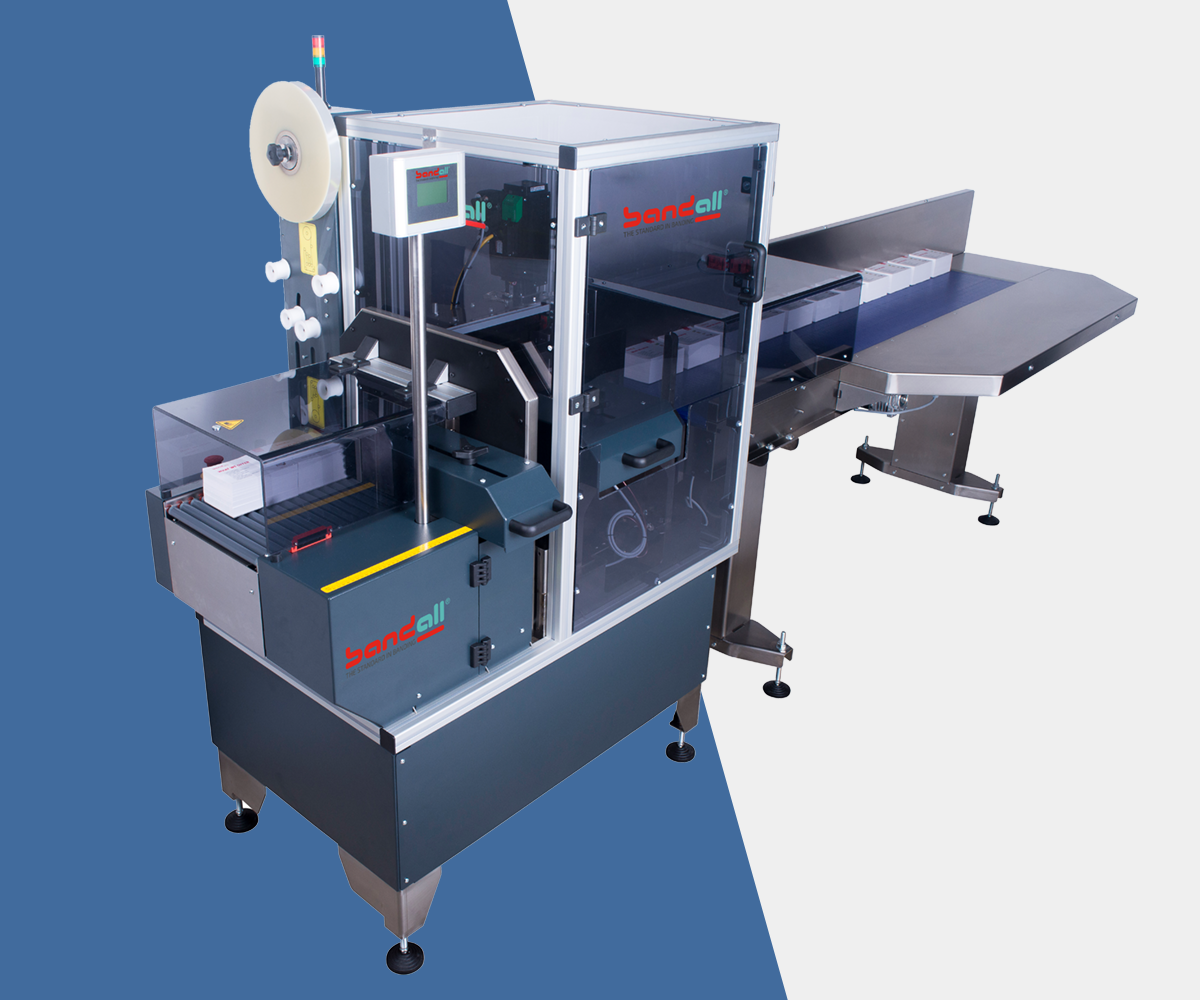

Integration into fully automatic line
| MACHINE TYPE | A Max. prod. width | B Max. prod. height | C Channel width | D Work height | E Total height | F Width | G Base depth | H* Depth | Weight KG | Bundles/min |
|---|---|---|---|---|---|---|---|---|---|---|
| BA24/15-30 | 240 | 150 | 30 | 950 | 1210 | 600 | 500 | 500 | 71 | 36 |
| BA32/20-30 | 320 | 200 | 30 | 950 | 1260 | 600 | 500 | 500 | 70 | 34 |
| BA40/25-30 | 400 | 250 | 30 | 950 | 1310 | 760 | 500 | 500 | 92 | 32 |
| BA48/30-30 | 480 | 300 | 30 | 950 | 1360 | 760 | 500 | 500 | 90 | 30 |
| * With a channel width of 50 mm, H is 520 mm. With a channel width of 77 mm, H is 547 mm. With a channel width of 102 mm, H is 572 mm. With a channel width of 127mm, H is 597 mm. 127 mm is available only for the BA24 and BA32. Sizes in mm. |
||||||||||
