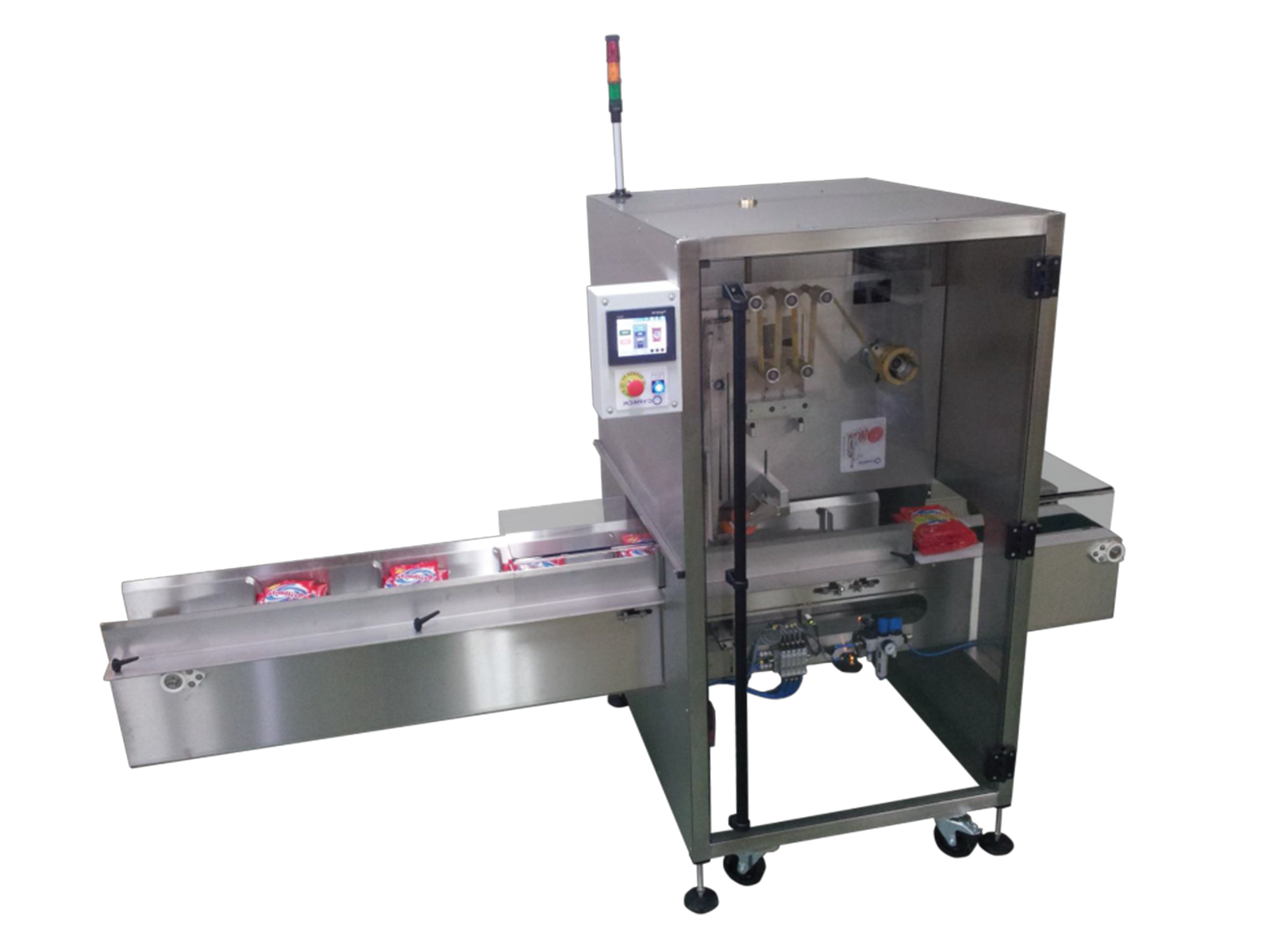

The MULTIPACK P25R machine is designed to bundle with adhesive strips packets, bags, cardboard or plasticboxes, softorrigid. The products are flat conveyed and stacked.
This solution is particularly suitable for small series of batches that require adhesive rolls impression in small quantities. The adhesives pool width corresponds to the adhesive strip width applied on the bundle.suitable for a large range of products, adjustable adhesive strip position and width, application of printed, spotted or neutral adhesive tapes.
fast and easy formats change with optinal accessibility for maintenance operations. Colour touch panel to access all parameters.
sturdy stainles ssteel construction, state of theart components, latest in servo drive technology.
easy and trouble free operation (availability of min.99%), low maintenance machine.
Semi-automatic version with manual feed or in line automatic version
Multi-formats
Adhesive labels application head
| Technical specifications | MULTIPACKP25R |
|---|---|
| Speed (per lane) | Up to 30 cycles / min |
| Number of lanes | Up to 2 |
| Power supply | 3*400V / N / PE / 50-60Hz |
| Installed power | 2 KW |
| Machine dimensions | 3,400 x 1,200 mm |
| Adhesive strip specifications | |
| Length Width 3” spool mandrel |
From 200 to 600 mm From 30 to 80mm Up to 2,500 strips/660 m spool |
| Construction | |
| Frame, casing Electrical cabinet Mechanical parts Doors |
Stainless steel Painted steel Stainless steel and anodized aluminium Polycarbonate |
