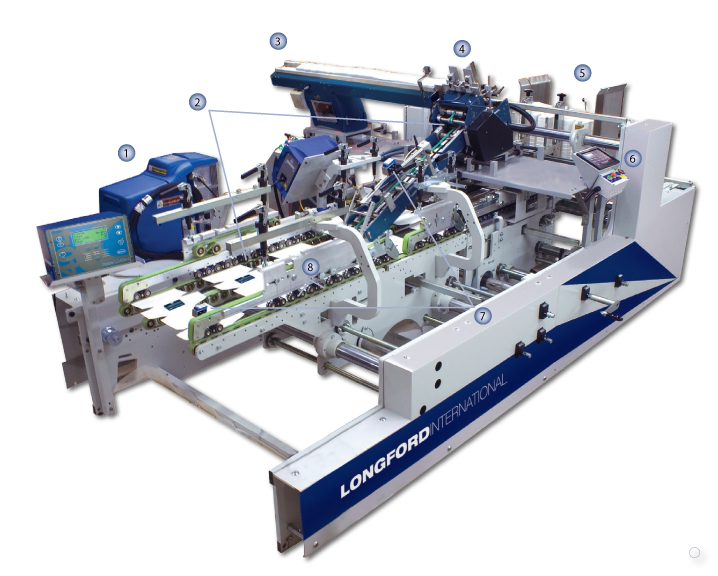

These high speed feeders are specifically designed to integrate with any folder gluer or tipping system. The HS series of feeders can be configured with a Longford AL350 product autoloader and easily integrates with OEM equipment such as vision systems, bar code readers and any style glue system. The HS series has a placement tolerance of +/- 1/16" at speeds of up to 33,000 pieces per hour.
BAR CODE READERS for both leaflets and cartons, ensure 100% validation of product.
DRIVEN NIP ROLLERS Assist in placement accuracy
(Either hot or cold glue) Affixes leaflet/premium to the carton
(Interfaced with the High Speed Tipping Feeder) Extends reload time up to 30 minutes

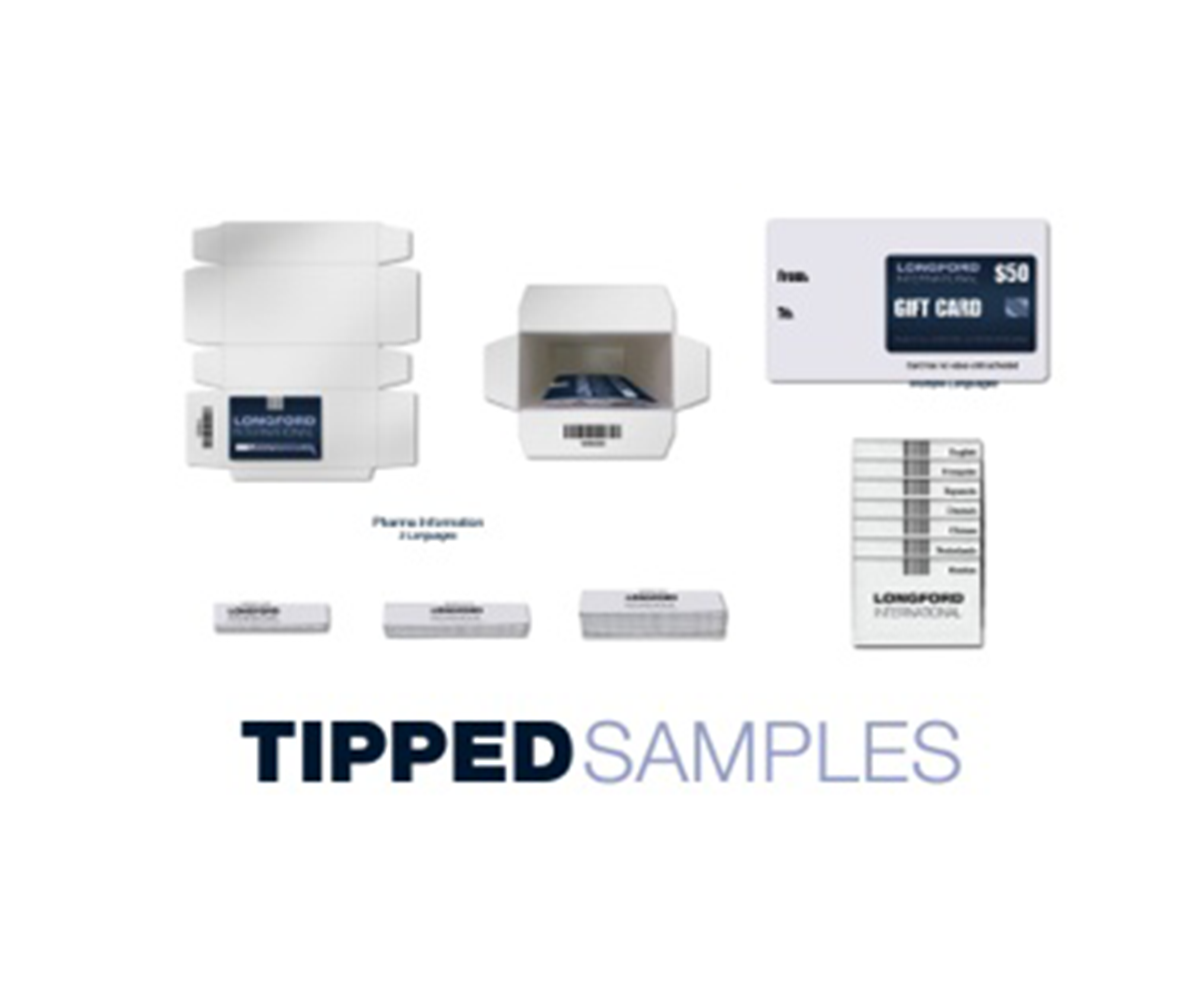

(Tipped onto carton blank) Adds value to client’s price per piece, enhances revenue/margin. Allows clients cartoner to run better.
| Specifications | C350 Feeder | C700 Feeder |
|---|---|---|
| Minimum Product Length | 2" 50 mm | 2" 50 mm |
| Maximum Product Length | 9" 228 mm | 17" 430 mm |
| Minimum Product Width | 1 ½" 38 mm | 1 ½" 38 mm |
| Maximum Product Width | 6" 152 mm | 16" 406 mm |
| Minimum Product Thickness | 0.004" .10 mm | 0.004" 10 mm |
| Maximum Product Thickness | 0.250" 6 mm | 0.250" 6 mm |
| Speed | Up to 550 pieces per minute | |
